Lugar de origen: | CHINA |
---|---|
Nombre de la marca: | ABB |
Número de modelo: | IRB6700-200/2.6 |
Cantidad de orden mínima: | 1 sistema |
Precio: | US $33510 |
Detalles de empaquetado: | UNA robot de soldadura de la cosecha de la estación de ABB 6 del eje ABB IRB6700 6 AXIS del robot in |
Tiempo de entrega: | 30-60 días del trabajo |
Condiciones de pago: | L/C, T/T, Western Union |
Capacidad de la fuente: | 100 sistemas/mes |
NOMBRE: | Alcance de pulido 2600m m del robot y de la carga útil 200Kg de soldadura de la cosecha de la asambl | Uso: | Asamblea que pule escogiendo la soldadura |
---|---|---|---|
Carga útil: | 200kg | Alcance: | 2600m m |
Número de hachas: | 6 | Material: | aleación de aluminio |
Protección: | Std: IP67. | Montaje: | Piso, invertido |
Coloque la repetibilidad: | 0.05m m | Regulador: | IRC5 el solo regulador montado del gabinete IRC5 PMC panel |

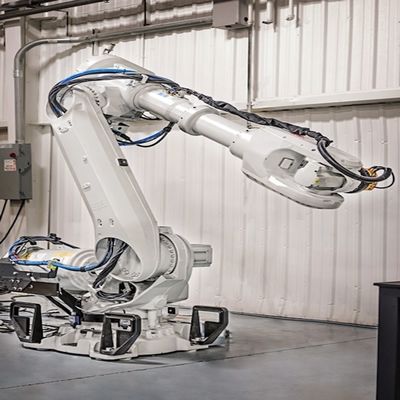

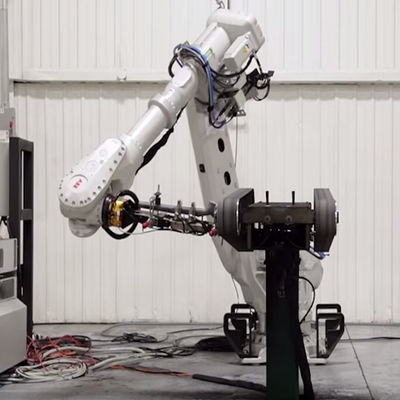

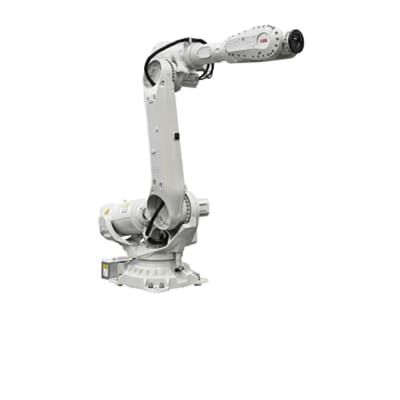

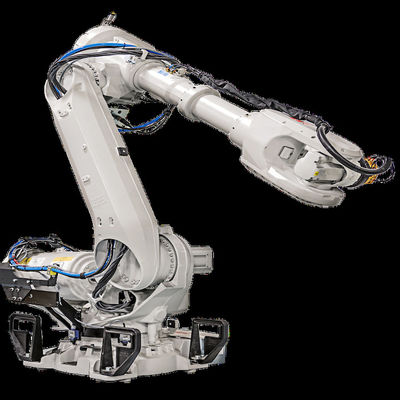

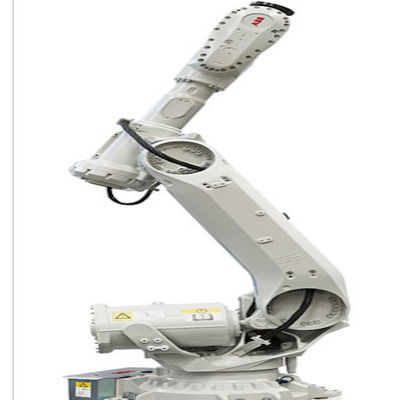

ABB IRB6700 6 Axis Industrial Robot Arm Assembly Polishing Picking Welding robot and Payload 200Kg Reach 2600mm
Specification
Robot version | Reach(m) | Handling capacity(kg) | Center of gravity(kg) | Wrist torque(Nm) |
Without LeanID | ||||
IRB 6700-200/2.60 | 2.60 | 200 | 300 | 981 |
IRB 6700-155/2.85 | 2.85 | 155 | 300 | 927 |
IRB 6700-150/3.20 | 3.20 | 150 | 300 | 1135 |
IRB 6700-300/2.70 | 2.70 | 300 | 300 | 1825 |
Without LeanID | ||||
IRB 6700-200/2.60 | 2.60 | 175 | 300 | 981 |
IRB 6700-155/2.85 | 2.85 | 140 | 300 | 927 |
IRB 6700-150/3.20 | 3.20 | 145 | 300 | 1135 |
IRB 6700-300/2.70 | 2.70 | 270 | 300 | 1825 |
Number of axes 6 | ||||
Protection | Std:IP67.Option:Foundry Plus 2 | |||
Mounting | Floor,inverted | |||
Controller |
IRC5 Single Cabinet/ IRC5 PMC Panel Mounted Controller |
Performance(according to ISO 9283)
Position repeatability |
Path repeatability |
|
IRB 6700-200/2.60 | 0.05mm | 0.10mm |
IRB 6700-155/2.85 | 0.10mm | 0.15mm |
IRB 6700-150/3.20 | 0.10mm | 0.15mm |
IRB 6700-300/2.70 | 0.10mm | 0.15mm |
Technical information
Electrical Connections | ||
Supply voltage | 200-600 V,50/60 Hz | |
Energy consumption | 2.8KW | |
Physical | ||
Robot base | 1004x720 mm | |
Robot weight(without Dress Pack) | ||
IRB 6700-200/2.60 | 1250kg | |
IRB 6700-155/2.85 | 1260kg | |
IRB 6700-150/3.20 | 1280kg | |
IRB 6700-300/2.70 | 1525kg |
Company Information
Our Service
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
