EMERSON CROSBY Pneumatic J-Series Direct Spring Pressure Relief Valves

EMERSON CROSBY Pneumatic J-Series Direct Spring Pressure Relief Valves
EMERSON CROSBY Pneumatic J-Series Direct Spring Pressure Relief Valves EMERSON CROSBY Pneumatic J-Series Direct Spring Pressure Relief Valves EMERSON CROSBY Pneumatic J-Series Direct Spring Pressure Relief Valves
Informacion basica
Nombre de la marca: CROSBY
Número de modelo: J-SERIES
Cantidad de orden mínima: 1
Precio: Negotiation
Detalles de empaquetado: Las cajas de madera para el comercio exterior, IPPC de la exportación esterilizaron las cajas de mad
Tiempo de entrega: 4-10 semanas
Condiciones de pago: L/C, T/T, Western Union
Capacidad de la fuente: 50
Contactar ahora
Product name: EMERSON CROSBY pneumatic J-Series direct spring pressure relief valves Brand: EMERSON CROSBY
Model: J-SERIES Matrial: Aluminum /stainless steel
Supply Voltage: 9 ~ 28 V DC Conduit Entry: G 1/2
Time and Temperature Drift: < +1.0% Housing Material: Housing Material
Degree of Protection: IP20 (EN60529 Fusing (input: Internally fused
End Connection Styles: NPT, SWE, and Welded and Integral CL150 RF
Alta luz:

EMERSON CROSBY Pressure Relief Valves

Product Description






EMERSON CROSBY pneumatic J-Series direct spring pressure relief valves



J-Series valves provide high quality and dependable overpressure protection for air, gas, steam, vapor, liquid and two-phase applications in one simple design
Features

* ASME/NB certified capacities for air, water and steam.
* Full compliance with all major global pressure relief standards including ASME VIII, XIII, API 526/527, EN4126 and PED/CE.
* Highly customizable to meet most applications.
* Interchangeable parts to reduce maintenance costs.
* Full nozzle configuration.
* Simple and reliable design.
* Easy maintenance.
* Soft seat options for superior seat tightness.
* Adjustable blowdown to reduce product loss.
* Restricted Lift available.

CERTIFICATIONS AND TYPE APPROVALS
• SIL 3 Capable per IEC 61508
• ASME Boiler and Pressure Code Section VIII and Section XIII
•National Board of Boiler and Pressure Vessel Inspectors Capacity Certifications
• Canadian Registration Number
• Pressure Equipment Directive (2014/68/EU), (ISO-4126-1) (CE)
• China Manufacturing License (TS) • United States Coast Guard (USCG)
•Australia (AS-1271) • Bureau Veritas (BV) certification

Specifications


Pressure Range

5-100 psi (35-700 kPa), (0.35-7 bar)

Certifications

PED, CUTR, ATEX

Inlet Pressure Rating

1.7MPa(17bar)

outlet Pressure Rating

0.42MPa

Weight

1~3KG

Application

Gas& Oil industry



EMERSON CROSBY Pneumatic J-Series Direct Spring Pressure Relief Valves 0






Special features

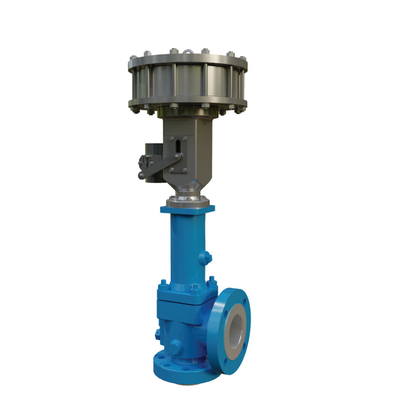

The CROSBY SIL 3 Pneumatic Actuated PRV is a high performance instrumented solution providing on demand actuation as part of a
Safety Instrumented System (SIS) or Controlled Safety Pressure Relief System (CSPRS) reducing the need for Emergency Blowdown
valves, associated piping and additional construction cost. In addition, the Crosby JBS-E PRV provides standard pressure relief
valve protection of the system in the event of an overpressure condition




Packing & Delivery








EMERSON CROSBY Pneumatic J-Series Direct Spring Pressure Relief Valves 1

Our Service


EMERSON CROSBY Pneumatic J-Series Direct Spring Pressure Relief Valves 2

1.Swift delivery
For common parts, we can deliver the goods within 3 days

2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.


Our Company


EMERSON CROSBY Pneumatic J-Series Direct Spring Pressure Relief Valves 3
Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd.
Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conservancy and hydropower, thermal power generation and other mechanical and electrical equipment products; Well-known brand fluid control valves; instrumentation; hydraulic pipe fittings; bearings; seals; industrial automation and other high-tech enterprises.


EMERSON CROSBY Pneumatic J-Series Direct Spring Pressure Relief Valves 4

EMERSON CROSBY Pneumatic J-Series Direct Spring Pressure Relief Valves 5

EMERSON CROSBY Pneumatic J-Series Direct Spring Pressure Relief Valves 6

EMERSON CROSBY Pneumatic J-Series Direct Spring Pressure Relief Valves 7
