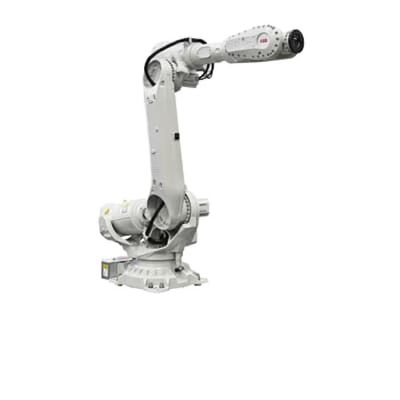

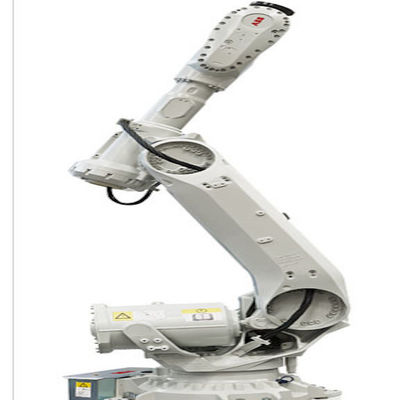

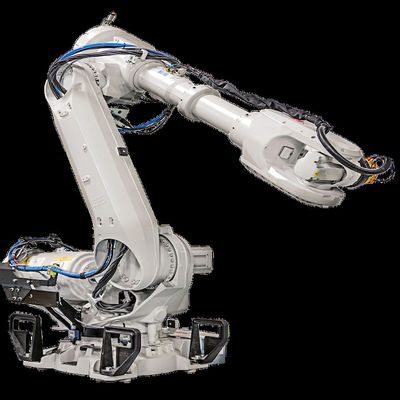

ABB IRB6700 6 Axis Industrial Robot Arm Assembly Polishing Picking Welding Robot and Payload 300Kg Reach 2700mm
Specification
| Robot version | Reach(m) | Handling capacity(kg) | Center of gravity(kg) | Wrist torque(Nm) |
| Without LeanID | ||||
| IRB 6700-200/2.60 | 2.60 | 200 | 300 | 981 |
| IRB 6700-155/2.85 | 2.85 | 155 | 300 | 927 |
| IRB 6700-150/3.20 | 3.20 | 150 | 300 | 1135 |
| IRB 6700-300/2.70 | 2.70 | 300 | 300 | 1825 |
| Without LeanID | ||||
| IRB 6700-200/2.60 | 2.60 | 175 | 300 | 981 |
| IRB 6700-155/2.85 | 2.85 | 140 | 300 | 927 |
| IRB 6700-150/3.20 | 3.20 | 145 | 300 | 1135 |
| IRB 6700-300/2.70 | 2.70 | 270 | 300 | 1825 |
| Number of axes 6 | ||||
| Protection | Std:IP67.Option:Foundry Plus 2 | |||
| Mounting | Floor,inverted | |||
| Controller |
IRC5 Single Cabinet/ IRC5 PMC Panel Mounted Controller |
|||
Performance(according to ISO 9283)
|
Position repeatability |
Path repeatability |
|
| IRB 6700-200/2.60 | 0.05mm | 0.10mm |
| IRB 6700-155/2.85 | 0.10mm | 0.15mm |
| IRB 6700-150/3.20 | 0.10mm | 0.15mm |
| IRB 6700-300/2.70 | 0.10mm | 0.15mm |
Technical information
| Electrical Connections | ||
| Supply voltage | 200-600 V,50/60 Hz | |
| Energy consumption | 2.8KW | |
| Physical | ||
| Robot base | 1004x720 mm | |
| Robot weight(without Dress Pack) | ||
| IRB 6700-200/2.60 | 1250kg | |
| IRB 6700-155/2.85 | 1260kg | |
| IRB 6700-150/3.20 | 1280kg | |
| IRB 6700-300/2.70 | 1525kg | |
