SAMSON 3222 Series Pneumatic Control Valve with Fisher 3582i Positioner

1
MOQ
Negociable
Precio
SAMSON 3222 Series Pneumatic Control Valve with Fisher 3582i Positioner
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Product name: Samson 3241 Pneumatic control valve with Fisher 3582i digital positioner
Brand: SAMSON
Model: 3222 series
Matrial: Alloy/Steel
Size: 2-12 inch
Pressure rating: PN 25
Version: JIS
Medium temperature: -15 to 200 °C / 5 to 392 °F
Supply: Electric
Lining: without
Accuracy: ±0.1mm
Life Span: 50000h
Material: Aluminum Alloy
Power: 20W
Pressure: 0.2-1.6MPa
Protection Level: IP65
Speed: 100-1000rpm
Temperature: -20-80℃
Torque: 2-20Nm
Type: Pneumatic Actuator
Voltage: 24V
Warranty: 1 year
Resaltar:

SAMSON 3222 pneumatic control valve

,

Fisher 3582i positioner valve

,

industrial pneumatic control valve with positioner
Información básica
Nombre de la marca: Samson
Model Number: 3510
Pago y Envío Términos
Packaging Details: Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)
Delivery Time: 4-10 weeks
Payment Terms: L/C,T/T,Western Union
Supply Ability: 50
Descripción de producto
Samson 3241 Pneumatic Control Valve with Fisher 3582i Digital Positioner
Product Specifications
Attribute Value
Brand SAMSON
Model 3222 series
Material Aluminum Alloy/Steel
Size 2-12 inch
Pressure rating PN 25
Version JIS
Medium temperature -15 to 200 °C / 5 to 392 °F
Power 20W, 24V
Pressure range 0.2-1.6MPa
Protection level IP65
Life span 50,000 hours
Warranty 1 year
SAMSON 3222 Series Pneumatic Control Valve with Fisher 3582i Positioner 0 SAMSON 3222 Series Pneumatic Control Valve with Fisher 3582i Positioner 1

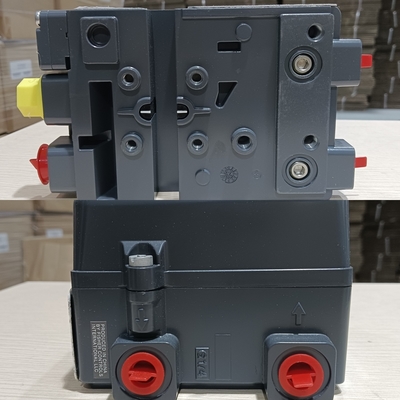

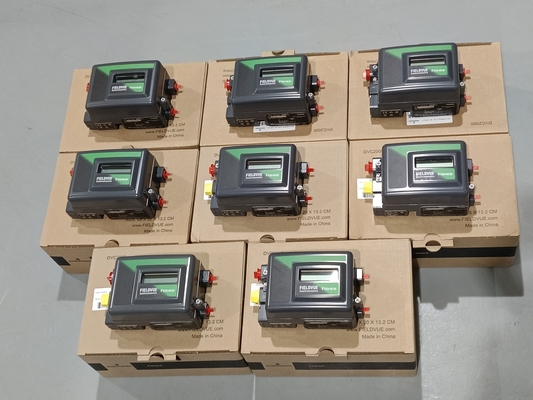

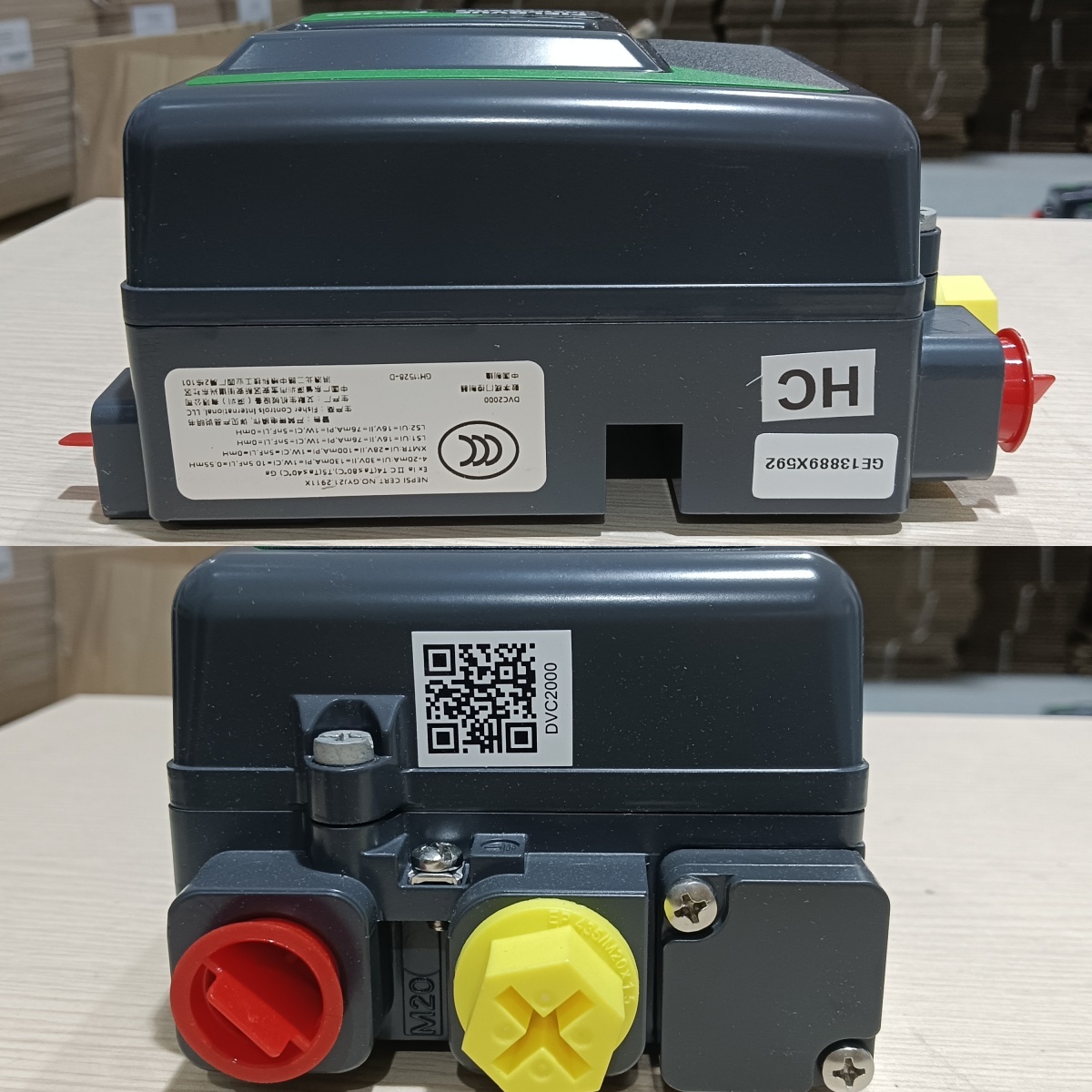

FIELDVUE DVC2000 Digital Valve Controller
The FIELDVUE DVC2000 digital valve controller is designed for easy mounting and operation. It converts a 4-20 mA input signal into a precise pneumatic output signal for control valve actuators. Features include:
  • Simple setup with push button and multi-language LCD interface
  • Two-stage positioner design for superior performance
  • High static gain pre-amplifier stage for responsiveness
  • Power amplifier stage for optimal air volume delivery
  • Minimal steady-state air consumption
Technical Specifications
Pressure Range 5-100 psi (35-700 kPa, 0.35-7 bar)
Certifications PED, CUTR, ATEX
Inlet Pressure Rating 210 psi (1.5 MPa, 15 bar) maximum
Connection SOLENOID
Application Gas & Oil industry
Operation Principle
The DVC2000 positions valves by adjusting air output to actuators based on 4-20 mA input signals. The microprocessor-controlled system features:
  • Digital control algorithm for precise positioning
  • I/P converter transforming electronic signals to pneumatic pressure
  • Pneumatic relay assembly amplifying pressure signals
  • Linkage-less feedback system for accurate position sensing
  • Two relay options for different pressure requirements (low: <3.5 bar, high: 3.5-7.0 bar)
Product Images
SAMSON 3222 Series Pneumatic Control Valve with Fisher 3582i Positioner 2 SAMSON 3222 Series Pneumatic Control Valve with Fisher 3582i Positioner 3 SAMSON 3222 Series Pneumatic Control Valve with Fisher 3582i Positioner 4
Our Services
  • Swift delivery: Common parts delivered within 3 days
  • Original products: Direct from manufacturer with full documentation
  • Quality assurance: Rigorous testing and inspection
  • Technical support: Comprehensive maintenance and repair services
  • 24/7 response: Immediate assistance for all inquiries
SAMSON 3222 Series Pneumatic Control Valve with Fisher 3582i Positioner 5
About Our Company
Xiangjing(Shanghai) Mechanical and Electrical Tech. Co., Ltd. specializes in technical development and services for marine, oil/gas, petrochemical, and power generation industries. We provide:
  • High-quality fluid control valves and instrumentation
  • Hydraulic components and industrial automation solutions
  • Expert installation and commissioning services
SAMSON 3222 Series Pneumatic Control Valve with Fisher 3582i Positioner 6 SAMSON 3222 Series Pneumatic Control Valve with Fisher 3582i Positioner 7 SAMSON 3222 Series Pneumatic Control Valve with Fisher 3582i Positioner 8 SAMSON 3222 Series Pneumatic Control Valve with Fisher 3582i Positioner 9 SAMSON 3222 Series Pneumatic Control Valve with Fisher 3582i Positioner 10
