Rosemount 3301 HART Guided Wave Radar Level Transmitter ROSEMOUNT 3300 3301 3302 Price

1
MOQ
1300USD~3800USD
Precio
Rosemount 3301 HART Guided Wave Radar Level Transmitter ROSEMOUNT 3300 3301 3302 Price
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Sensibilidad: Hasta 150: 1
Peso: Depende del instrumento específico
Material mojado: Acero inoxidable; 316 / 316L y CF3M
Tasa de actualización inalámbrica: 1 segundo a 60 minutos, seleccionable por el usuario
Rango de medición: Hasta 2000 diferenciales de la PSI (barra 137,89)
Protocolo de comunicación: 4-20 Ma Hart
Rango de temperatura: -200 °C a +850 °C
Rango de medición: Digital o analógica
Información básica
Lugar de origen: PORCELANA
Nombre de la marca: Rosement
Número de modelo: Las demás:
Documento: xiangjing valve&instrument ...t .pdf
Pago y Envío Términos
Detalles de empaquetado: Caja de madera/caja de cartón
Tiempo de entrega: 6-8 semanas
Condiciones de pago: ExW
Capacidad de la fuente: 300 piezas/mes
Descripción de producto
Product Overview

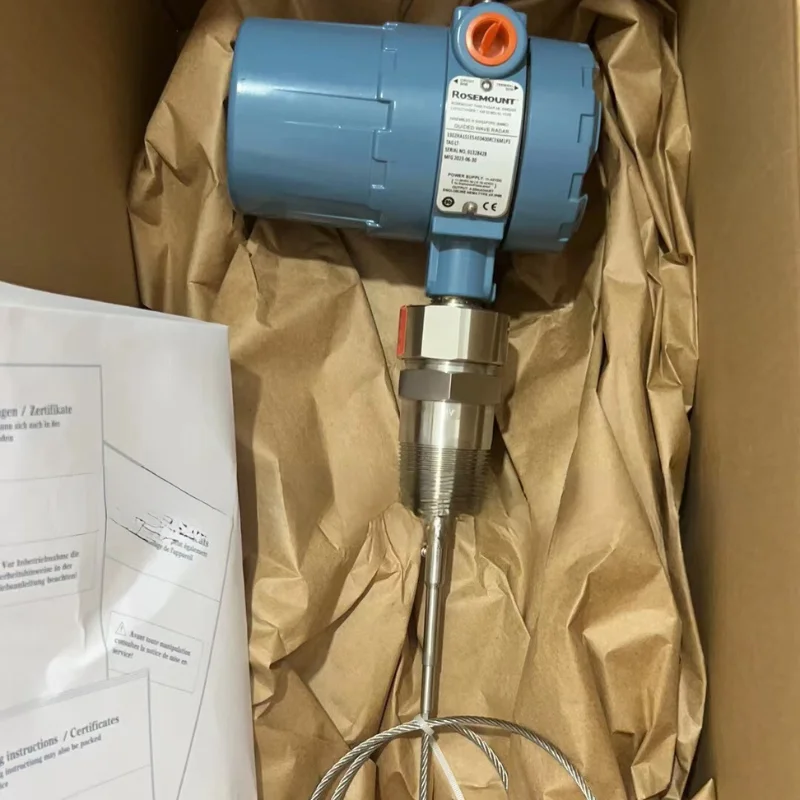

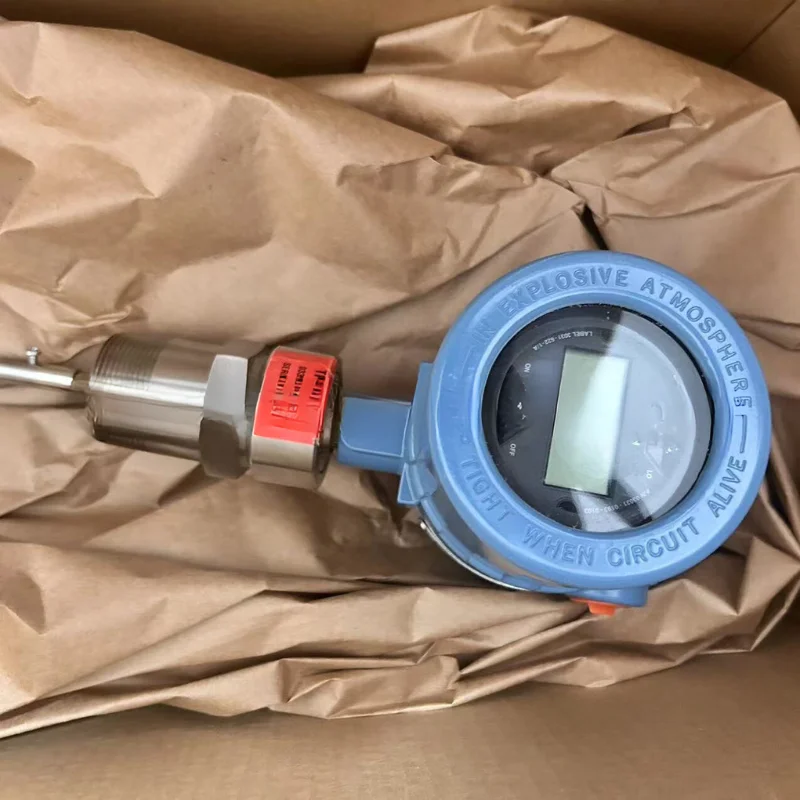

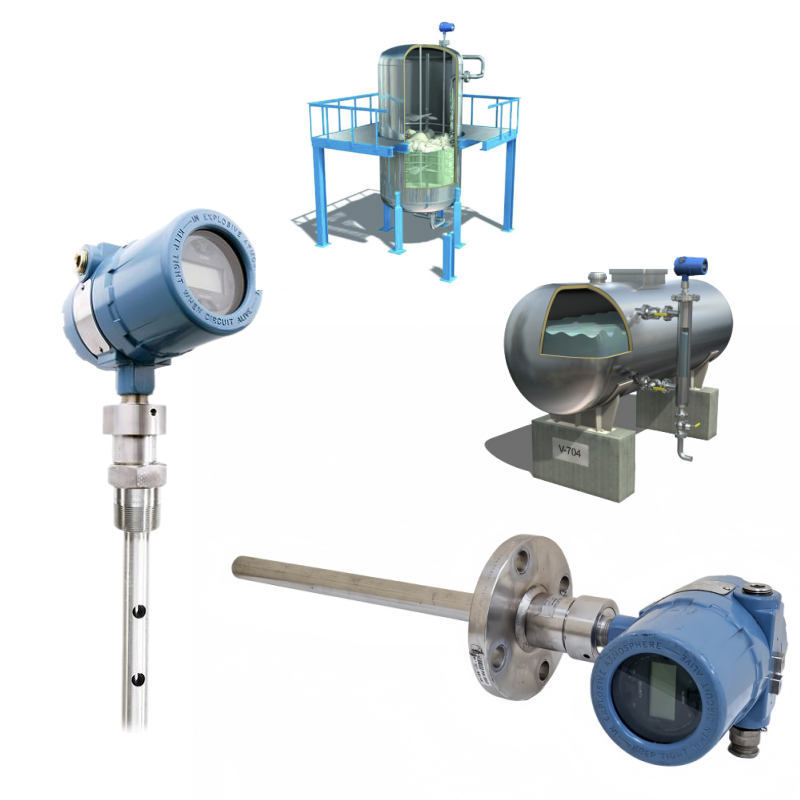

The Rosemount 3300 Guided Wave Radar Level Transmitter is designed to provide accurate and continuous measurement of level and interface in liquids and bulk solids. Leveraging advanced guided wave radar (GWR) technology, it delivers consistent performance in changing process conditions, including temperature, pressure, vapor, and density variations. With easy installation, no moving parts, and minimal maintenance, the Rosemount 3300 helps industries optimize safety, efficiency, and process reliability.

Features
  • Continuous, non-contact guided wave radar level measurement
  • Reliable performance unaffected by vapor, foam, or turbulence
  • Suitable for both liquid and bulk solid measurement
  • Maintenance-free with robust probe designs
  • Easy to configure with user-friendly interface
  • HART communication for remote monitoring and diagnostics
  • High measurement accuracy for critical process control
Technical Specifications
  • Measurement Technology: Guided Wave Radar (GWR)
  • Measuring Range: Up to 35 m (115 ft) depending on probe type
  • Accuracy: ±5 mm
  • Output Signal: 4–20 mA with HART communication
  • Process Temperature Range: -40 °C to +250 °C (-40 °F to +482 °F)
  • Pressure Range: Vacuum to 40 bar (580 psi)
  • Enclosure Materials: Aluminum or stainless steel
  • Approvals: ATEX, FM, IECEx, SIL certification available
Applications

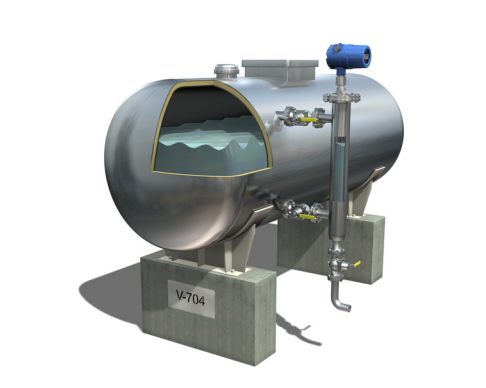

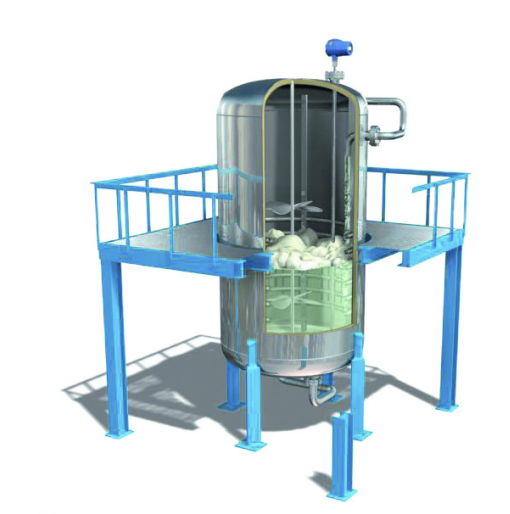

  • Oil and gas tanks and vessels
  • Petrochemical and chemical processing plants
  • Water and wastewater treatment facilities
  • Food and beverage manufacturing
  • Mining and bulk solids storage
  • Power generation industries
FAQ
Q1: What is the difference between Rosemount 3300 and 3301?
A1: The Rosemount 3300 is an earlier model, offering reliable GWR measurement for liquids and solids, while the 3301 provides enhanced features and higher flexibility in challenging applications.
Q2: Can the Rosemount 3300 measure both liquids and solids?
A2: Yes, it is suitable for continuous level measurement in both liquids and bulk solid applications.
Q3: Is calibration required for installation?
A3: The Rosemount 3300 typically requires minimal or no calibration, simplifying setup and reducing downtime.
Contact Us
For more information or to request a quotation:
edward.zhao@gongboshi.com+86-21-56633922www.shgongboshi.com
Related Products
  • Rosemount 3301 Guided Wave Radar Level Transmitter
  • Rosemount 5300 Series Guided Wave Radar
  • Rosemount 5400 Non-Contact Radar Transmitter
  • Rosemount 3144S Temperature Transmitter
Tags

Rosemount 3300, Guided Wave Radar, Rosemount Level Transmitter, Radar Level Sensor, Emerson Rosemount, Tank Monitoring, Industrial Process Control
