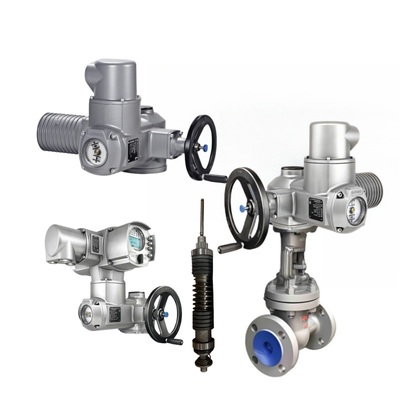

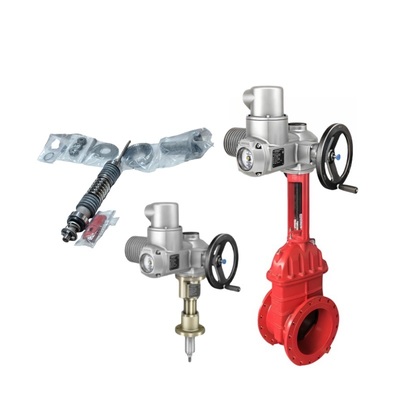

AUMA SA Actuator 10 Nm 32000 Nm Electric Valve Actuator AUMA SA 07.5 F10 Multi Turn Actuator for Industrial Valve

The AUMA SA 07.5‑F10 is a compact, high-performance multi-turn electric actuator designed for precise valve automation in demanding industrial environments. Delivering 30–60 Nm torque with a standard F10 flange, it features non-intrusive electronic setting via MWG magnetic limit and torque sensing, eliminating the need to open the housing. The integrated AUMATIC AC 01.2 control unit supports MODBUS RTU, Profibus DP, and HART, with optional Bluetooth commissioning. With IP68 enclosure and Ex d IIC T4 explosion-proof certification, it ensures reliable operation in oil & gas, water treatment, and power plants. Ideal for gate, globe, and sluice valves requiring accurate positioning and diagnostic feedback.

• Non-Intrusive Setting: MWG for limit/torque without opening cover.
• 60 Nm Torque: Adjustable 30–60 Nm in 8 steps.
• F10 Mounting: ISO 5210 standard flange.
• AUMATIC AC 01.2: MODBUS RTU, Profibus, HART.
• Ex d IIC T4: Flameproof for Zone 1 hazardous areas.
• IP68 Enclosure: Submersible up to 8 m head.
• Bluetooth Interface: Wireless commissioning and diagnostics.
• Soft Start/Stop: Reduces water hammer and mechanical stress.

• Water Treatment: Penstock and sluice gate control.
• Oil & Gas: Pipeline isolation valves.
• Power Plants: Boiler feedwater regulation.
• Chemical Processing: Reactor inlet/outlet valves.
• Marine: Ballast and bilge systems.

Electronically via AUMATIC, no mechanical adjustment needed.

Yes, via optional Bluetooth with AUMA CDT software.

Yes, Ex d IIC T4 certified for Zone 1.

Yes, with optional RWG electronic position transmitter.

S2-15 min / S4-25% (1,200 c/h) per IEC 60034.

For more information about the AUMA SA 07.5‑F10, pricing, or to request a demo, contact our team:

• Email: tracychen@gbsxj.com
• Phone: +8613032169170

• SA 07.6‑F10: 120 Nm higher torque model.
• AUMATIC ACExC 01.2: Explosion-proof controls.
• AUMA GSM Gearbox: For high-thrust applications.
• AUMA Cloud: Remote actuator diagnostics.
