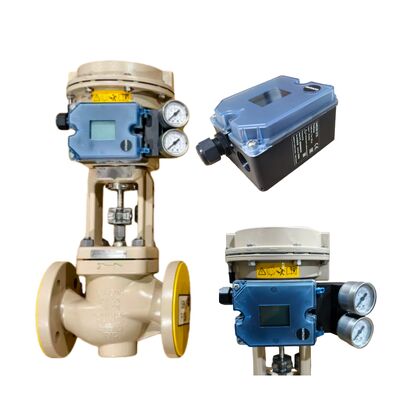

Original Samson 3277 Pneumatic Diaphragm Actuator 3241 Globe Valve Body 3725 Valve Positioner

The Samson 3277 Pneumatic Diaphragm Actuator is a widely used linear actuator designed for precise control of globe control valves in industrial process automation systems. Known for its robust design, reliable operation, and long service life, the Samson 3277 actuator is commonly paired with Samson control valves and valve positioners to form a complete control valve assembly.

This pneumatic diaphragm actuator converts a pneumatic control signal into linear valve stem movement, enabling accurate flow, pressure, and level regulation. Its modular construction allows flexible configuration for different thrust ranges, fail-safe actions, and mounting standards, making it suitable for a wide range of applications.

• Pneumatic diaphragm actuator for linear control valves
• High positioning accuracy and stable operation
• Modular design for flexible configuration
• Supports fail-safe action through spring force
• Compatible with smart and analog valve positioners
• Low friction for smooth valve movement
• Reliable performance in continuous operation
• Easy installation and maintenance
• Suitable for harsh industrial environments
• Long service life with proven Samson design

• Control valve actuation in chemical and petrochemical plants
• Flow and pressure control in oil and gas processing
• Steam control in power generation facilities
• Water and wastewater treatment systems
• Industrial process automation and control loops
• General manufacturing and utility applications

• Provides reliable and precise valve actuation
• Ensures safe operation with fail-safe functionality
• Compatible with a wide range of Samson control valves
• Supports automation and digital control strategies
• Reduces maintenance with durable mechanical design
• Improves overall control loop stability

The Samson 3277 actuator uses pneumatic pressure applied to a flexible diaphragm to generate linear force. This force moves the actuator stem, which in turn adjusts the valve plug position. When air pressure is removed, the internal spring returns the actuator to its fail-safe position, ensuring safe operation during air supply failure.

When combined with a valve positioner, the actuator achieves precise positioning and fast response to control signals.

• Mount the actuator to the control valve bonnet
• Connect the instrument air supply
• Install and calibrate the valve positioner
• Set the desired fail-safe action
• Perform functional testing under operating conditions

• Samson 3241 Globe Control Valve
• Samson 3730 Smart Valve Positioner
• Samson 4763 Pneumatic Positioner
• Samson 3271 Pneumatic Actuator
