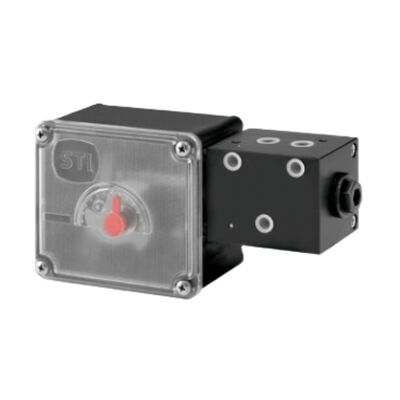

IMI STI PT Series SR/CCK Valve Positioner Double Single Acting for Butterfly Plug Ball Valves

1
MOQ
3800-3500$ per set
Precio
IMI STI PT Series SR/CCK Valve Positioner Double Single Acting for Butterfly Plug Ball Valves
Caracteristicas Galería Descripción de producto Calificaciones y Reseñas Pida una cita
Caracteristicas
Especificaciones
Señal de entrada: 3-15 psi y 4-20 mA
Temperatura de funcionamiento: -20°C a 70°C
Presión de suministro: 2,5-7 barras
Consumo de aire: 1,02 Nm³/h a 400 kPa
CV máx. flujo bajo: 0,34 (entrada y salida 1/4")
Conexión de alimentación: 1/4" ND
Conexión eléctrica: 1/2" NPTF
Histéresis: 0,5% de la carrera completa
Linealidad: 1% del recorrido completo
Sensibilidad: 0,25% del rango de señal
Resaltar:

IMI STI PT Series valve positioner

,

double acting valve positioner for butterfly valves

,

single acting valve positioner for ball valves
Información básica
Lugar de origen: Italia
Nombre de la marca: IMI STI
Número de modelo: SR/CCK
Documento: SR CCK.pdf
Pago y Envío Términos
Detalles de empaquetado: Embalaje de cartón/caja de madera
Tiempo de entrega: 6-8 semanas
Condiciones de pago: T/T
Capacidad de la fuente: 800 sistemas por año
Descripción de producto

The IMI STI PT Series SR/CCK Valve Positioner

The IMI STI PT Series SR/CCK Valve Positioner is a robust, high-reliability pneumatic positioner engineered for precise proportional control in industrial valve applications. Part of IMI STI's trusted PT Series, the SR/CCK delivers exceptional performance in demanding environments, ensuring accurate valve positioning for enhanced process control and operational efficiency.

Product Overview

The SR/CCK is specifically designed for proportional quarter-turn operation, making it ideal for actuating butterfly, plug, ball valves, and similar rotary devices. It can also be adapted for linear actuators using a dedicated bracket. Positioned in the control circuit between the air filter regulator and the actuator, this heavy-duty positioner operates on the balanced-forces principle, with air distribution managed by a reliable spool valve. Available in double-acting configuration (convertible to single-acting), it supports a wide range of actuator strokes through interchangeable linear cams (up to 270°). Built for harsh industrial conditions, the SR/CCK offers outstanding durability, high repeatability, and suitability for hazardous areas in sectors like oil and gas, refining, chemical processing, power generation, and metal production.

Features
  • Heavy-duty metallic construction for maximum reliability in aggressive environments
  • Proportional control for rotary (quarter-turn) and adaptable linear actuators
  • Double-acting design with single-acting capability
  • Interchangeable linear cams (up to 270°) for flexible stroke adjustment; custom profiles available
  • Balanced-forces spool valve system for precise air distribution and fast response
  • Split-range signal support for multi-actuator sequencing
  • Optional full stainless steel spool valve for enhanced corrosion resistance
  • High hysteresis and linearity performance
  • Outdoor installation-ready with robust protection
Technical Specifications
Input Signal:
3-15 psi (0.2-1 bar) pneumatic; split-range options available
Supply Pressure:
2-10 bar
Accuracy (with linear cam):
±1% of full range
Hysteresis:
Typically low (around 0.5-1% depending on configuration)
Linearity:
±1% of full stroke
Sensitivity:
High response to signal changes
Air Consumption:
Efficient design for reduced operational costs
Operating Temperature:
Standard -20°C to +70°C (extended ranges on request)
Cam Operating Angle:
Up to 270°
Connections:
Pneumatic ports ND 1/4"; electrical (for I/P variants) ND 1/2" NPTF
Enclosure:
Metallic case, heavy-duty for hazardous and outdoor use
Additional Options:
Intrinsically safe/explosion-proof versions, pressure gauges
Applications
  • Oil and gas production and refining
  • Chemical and petrochemical plants
  • Power generation facilities
  • Metal processing and mining operations
  • Any automated system requiring reliable quarter-turn or linear valve actuation in harsh, hazardous, or high-demand environments
FAQ
What types of valves is the SR/CCK best suited for?
It is optimized for quarter-turn valves like butterfly, ball, and plug valves, with adaptation possible for linear types via brackets.
Can it be used in hazardous areas?
Yes, its heavy-duty design supports installation in potentially explosive atmospheres, with optional certifications available.
Is it compatible with single-acting actuators?
Absolutely—the double-acting unit can be configured for single-acting operation.
How flexible is the cam system?
Multiple linear cams allow adjustment for different actuator strokes up to 270°, with custom profiles on request.
What maintenance is required?
Minimal due to its robust spool-based design; routine checks on air supply and calibration ensure long-term performance.
Contact Us

For inquiries, quotations, or technical support, reach out via:
WeChat / WhatsApp / Phone: +8613472860702

Related Products
  • FT FasTrak: High-capacity smart digital-pneumatic positioner with HART communication
  • SA/CL: Heavy-duty analog positioner for linear actuators
  • SA-1: Compact pneumatic/electro-pneumatic positioner
  • CRP-3/M: Advanced electro-pneumatic models
  • SHP: Smart High Performance Positioner for demanding applications
  • QT QuickTrak: Digital control system for high-speed precision
