Name: Rotork YT-3303 Smart Valve Positioner Digital Control Valve Positioner for Industrial Valves
Brand: Xiangjing (Shanghai) M&E Technology Co., Ltd
SKU: YT-3303
Price: 800 USD
Availability: InStock

Caracteristicas Galería Descripción de producto Calificaciones y Reseñas Pida una cita

Caracteristicas

Especificaciones

Tipo de movimiento: Linear/rotatorio

Tipo de actuación: Single / Double

Presión de suministro: 0,14 a 0,7 MPa (1,4 a 7 bar)

Entrada de conducto: G 1/2 o 1/2 NPT o M20x1.5P

Conexión aérea: Rc 1/4 o 1/4 NPT o G 1/4

Conexión del indicador: 1/8 NPT

Protección de ingreso: IP66, tipo 4X(FM) (excluidos los manómetros)

Temperatura de funcionamiento (tipo estándar): -30 a 85 °C (-22 a 185 °F)

Información básica

Lugar de origen: Porcelana

Nombre de la marca: Rotork

Número de modelo: YT-3303

Documento: PUB126-001-00_1225 Rotork V...rs.pdf

Pago y Envío Términos

Detalles de empaquetado: Carton + embalaje de madera + envasado protector

Tiempo de entrega: 60 días

Condiciones de pago: T/T

Capacidad de la fuente: 600 unidades por año

Galería

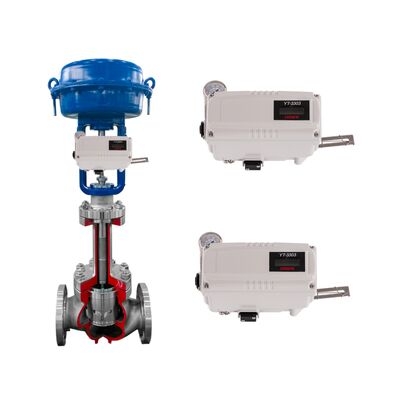

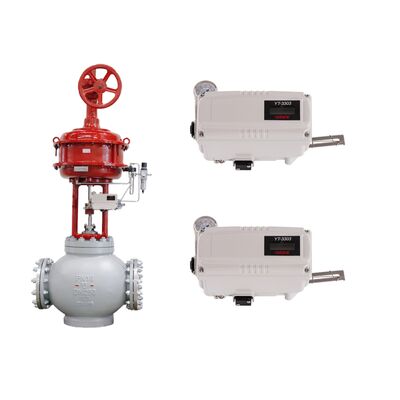

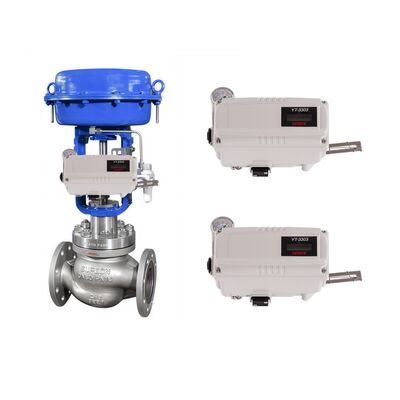

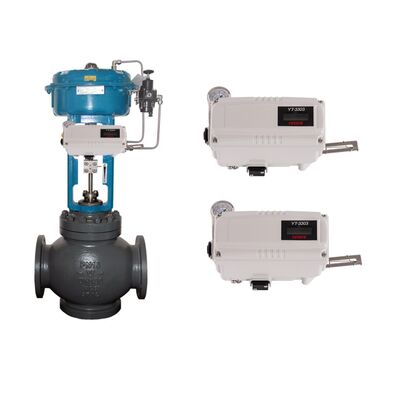

Rotork YT-3303 Smart Valve Positioner Digital Control Valve Positioner for Industrial Valves

Descripción de producto

Product Overview

The Rotork YT-3303 Smart Positioner (Potentiometer Type) is a robust, microprocessor-based valve positioner engineered to deliver precise control of valve stroke using a standard 4-20 mA input signal. Designed as part of the YT-3300 series with new software, it combines proven potentiometer feedback technology with advanced auto-calibration and PID control for consistent, repeatable performance in demanding industrial environments.

Key Features

Large LCD display with intuitive 4-button interface for easy status monitoring and configuration
Ultra-fast 0.5-second boot time minimizes valve travel during power interruptions
Stable operation under fluctuating supply pressure or high vibration conditions
Extremely low air consumption (below 2 LPM at idle) for reduced operating costs
Field-installable orifices to eliminate hunting and optimize performance
Modular construction for simplified maintenance
IP66 / Type 4X (FM) enclosure with corrosion-resistant polyester powder coating
SIL2 certified for safety-critical applications

Technical Specifications

Parameter	Specification
Housing Material	Aluminum
Motion Type	Linear (left yoke) or Rotary
Acting Type	Single / Double
Input Signal	4-20 mA DC
Minimum Current Signal	3.2 mA (standard)
Supply Pressure	0.14–0.7 MPa (1.4–7 bar)
Stroke	Linear: 10–150 mm; Rotary: 55–110°
Impedance	Max. 500 Ω @ 20 mA DC
Linearity / Hysteresis	±0.5 % F.S.
Sensitivity / Repeatability	±0.2 % / ±0.3 % F.S.
Flow Capacity	70 LPM (Sup. = 0.14 MPa)
Air Consumption	Below 2 LPM (Sup. = 0.14 MPa @ idle)
Operating Temperature	–30 to +85 °C (standard); –40 to +85 °C (low temp)
Ingress Protection	IP66, Type 4X (FM)
Explosion Protection	ATEX, IECEx, FM, CSA, KCs, NEPSI, INMETRO, UKEX, CCC, PESO (intrinsic safety)

Applications

Ideal for linear and rotary control valves in oil & gas, chemical processing, power generation, and water treatment plants where reliable potentiometer-based feedback and hazardous-area certifications are required.

Frequently Asked Questions

Q: What makes the YT-3303 different from the YT-3300?

A: The YT-3303 uses a proven potentiometer for position feedback, while the YT-3300 employs a non-contact sensor (NCS).

Q: Can the positioner be installed in explosive atmospheres?

A: Yes — it holds comprehensive intrinsic safety certifications worldwide.

Q: Is HART communication available?

A: Yes, as an optional feature (suffix code 2).
