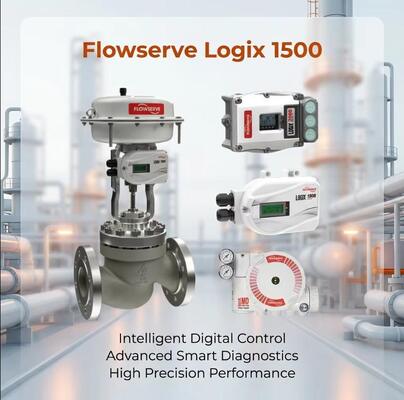

Flowserve Logix 1500 Intelligent HART Protocol Digital Valve Positioner Flow Control Oil Chemical Industry

1
MOQ
US $1380.00 - 1850.00/ Set
Precio
Flowserve Logix 1500 Intelligent HART Protocol Digital Valve Positioner Flow Control Oil Chemical Industry
Caracteristicas Galería Descripción de producto Calificaciones y Reseñas Pida una cita
Caracteristicas
Especificaciones
Histéresis: ≤ 1,0%
Resolución: ≤ 0,25%
Linealidad: +/- 1,25%
Repetibilidad: ≤ 0,25%
Información básica
Lugar de origen: Porcelana
Nombre de la marca: Flowserve Logix 1500
Número de modelo: Logix 1500
Documento: LOGX1500--AIBR002040_EN_A4.pdf
Pago y Envío Términos
Detalles de empaquetado: Caja de cartón/Cajón de madera
Tiempo de entrega: 8-10 semanas
Condiciones de pago: T/T
Capacidad de la fuente: 3000 SISTEMAS POR AÑO
Descripción de producto

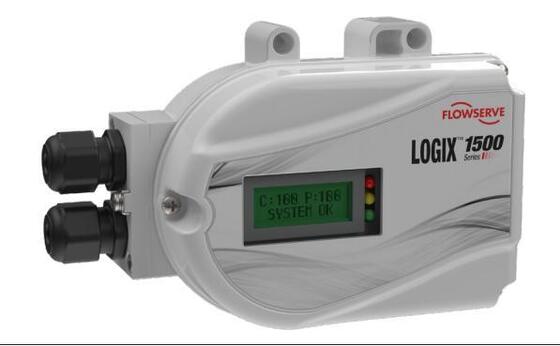

Flowserve Logix 1500 Digital Positioner
Product Overview
  1. Compact smart electro-pneumatic valve positioner with a 16-bit microprocessor, delivering accurate flow control for both linear and rotary pneumatic actuators.
  2. Built-in Quick-Cal one-button auto-calibration and HART 7 protocol, simplifying on-site commissioning and enabling remote parameter tuning via ValTalk software.
  3. Rugged corrosion-resistant cast aluminum housing with IP66 ingress protection, certified by ATEX, FM and CSA for safe deployment in explosive hazardous areas.
Technical Specifications
Parameter Specification
Input Signal 4-20mA DC with HART 7 Protocol
Repeatability ≤0.5% F.S.
Linearity <1% F.S.
Air Supply Range 1.4 – 10.3 bar (20 – 150 psig)
Air Consumption 0.05 SCFM @ 60 PSI
Operating Temperature -40°C ~ +80°C (-40°F ~ 176°F)
Enclosure Protection IP66 / NEMA 4X
Hazardous Certifications ATEX, FM, CSA (Intrinsically Safe)
Application Industry
  1. Oil & Gas: Wellhead flow control, pipeline transportation and refinery processing in Zone 1/2 hazardous environments.
  2. Petrochemical & Chemical: Reactor feed regulation, distillation column control and corrosive medium pipeline management.
  3. Power & Water Treatment: Boiler steam control, circulating water regulation and municipal sewage treatment valve automation.
Common Problems & Solutions
  1. No response to input signal

    Solution: Inspect 4-20mA wiring and power supply; verify air supply pressure and check pneumatic lines for leakage.

  2. Inaccurate valve positioning

    Solution: Re-execute Quick-Cal automatic calibration; check stroke linkage and position sensor for mechanical misalignment.

  3. Unstable HART communication

    Solution: Confirm cable impedance and length within specification; eliminate electrical interference and check IS barrier compatibility.

Replacement Models
  1. Flowserve Logix 520MD: Entry-level same-platform model with identical mounting footprint for direct drop-in replacement.
  2. Flowserve Logix 3200MD: Upgraded model with enhanced diagnostic functions, fully compatible with existing installation interfaces.
  3. Flowserve Logix 500 Series: Legacy model retrofit solution for in-place upgrade without extra mechanical modification.
Why Buy From Us
  1. 100% original authentic products from authorized Flowserve channels, backed by official quality warranty.
  2. Professional technical team provides pre-sales model matching and after-sales commissioning guidance.
  3. Customized support for mounting kits, accessories and certification options to fit different project needs.
Stock & Delivery Time
  1. Standard models are in local warehouse; sample orders can be dispatched within 3 working days.
  2. Bulk orders (10 units+) have a 40–60 working day lead time with export-standard fumigation-free packaging.
  3. Multiple shipping options: DHL/FedEx express for small orders, sea/air freight for bulk cargo, door-to-door service available.
