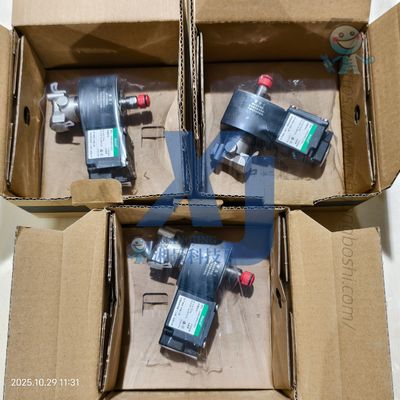

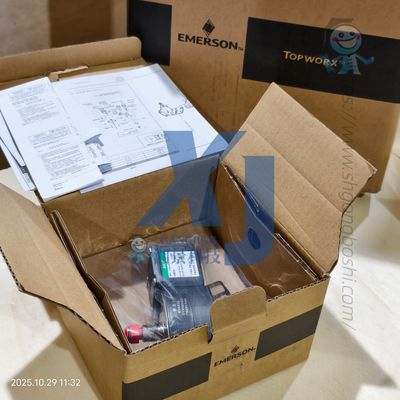

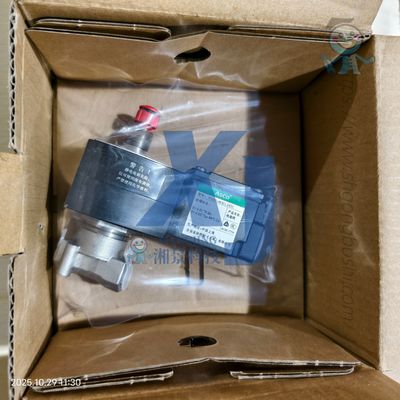

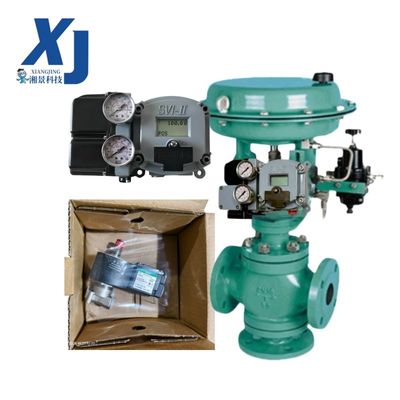

ASCO 8314 Series JPIS8314B301 24VDC Explosion-proof Solenoid Valves and Masonielan SVI II AP Digital Valve Positioner HART

1
MOQ
US $300.00 - 370.00/ Set
Precio
ASCO 8314 Series JPIS8314B301 24VDC Explosion-proof Solenoid Valves and Masonielan SVI II AP Digital Valve Positioner HART
Caracteristicas Galería Descripción de producto Calificaciones y Reseñas Pida una cita
Caracteristicas
Especificaciones
Tamaño de puerto: 1/4 NPT
Compatibilidad con los medios: Aire, gas inerte, agua limpia, gasóleo ligero.
Temperatura máxima del medio/ambiente: 149 °F (65 °C) aprox.
Consumo de energía: ~0,48 W (para bobina)
Fuente de alimentación/voltaje de bobina: 24 VCC nominal
Rango de presión de funcionamiento: 0-130 psi (NC) / 0-105 psi (NO) aproximadamente para aire/gas inerte
Serie: Válvula solenoide universal de 3 vías/2 posiciones serie 8314
Resaltar:

ASCO 8314 Series explosion-proof solenoid valve

,

JPIS8314B301 24VDC solenoid valve

,

Masonielan SVI II AP valve positioner
Información básica
Nombre de la marca: ASCO
Número de modelo: Las demás:
Pago y Envío Términos
Detalles de empaquetado: Caja de cartón
Tiempo de entrega: 60 días
Condiciones de pago: T/T
Capacidad de la fuente: 5000 juegos por año
Descripción de producto
Product Overview

The ASCO JPIS8314B301 24VDC Solenoid Valve is a robust, compact 2-way direct-acting valve engineered for reliable pneumatic control in industrial and commercial systems. Operating on 24VDC, it ensures quick response times and consistent performance for air, gas, and vacuum applications. With a 1/8" NPT port and 1/4" orifice, this valve is ideal for actuation in automation, HVAC, and machinery. Its rugged aluminum body and epoxy encapsulation provide exceptional durability, making it a trusted choice for demanding environments where precision and reliability are paramount.

Key Features
  • Direct-Acting Operation: Fast response without pilot pressure.
  • 24VDC Coil: Efficient low-voltage power for safety.
  • Compact Size: 1/8" NPT port for space-saving installation.
  • Rugged Aluminum Body: Corrosion-resistant for longevity.
  • Epoxy Encapsulation: Protects coil from contaminants.
  • 1/4" Orifice: Adequate flow for small to medium systems.
  • Normally Closed: Fails safe for critical applications.
  • Manual Override: Easy testing and maintenance.
Technical Specifications
Parameter Specification
Model Number JPIS8314B301
Voltage 24VDC
Valve Type 2-way direct-acting
Port Size 1/8" NPT
Orifice Size 1/4" (6.4 mm)
Operating Pressure 0-150 psi (0-10 bar)
Temperature Range -10°C to +50°C (14°F to 122°F)
Body Material Aluminum
Seal Material NBR (Nitrile)
Power Consumption 3.5 W
Response Time ≤ 50 ms
Certifications CE, UL
Applications

The ASCO JPIS8314B301 24VDC Solenoid Valve is suited for reliable pneumatic actuation in industrial settings:

  • Automation Systems: Controls pneumatic cylinders in robotics.
  • HVAC Equipment: Regulates air flow in ventilation.
  • Machinery: Activates valves in packaging machines.
  • Gas Handling: Safe on/off for compressed air lines.
  • Vacuum Systems: Precise control in vacuum grippers.
Frequently Asked Questions
What is the valve's response time?

≤ 50 ms for quick actuation.

Is it normally closed?

Yes, fails safe when de-energized.

What medium does it handle?

Air, inert gases, vacuum; not for corrosive fluids.

How is it powered?

24VDC with 3.5 W consumption.

Is it for hazardous areas?

Contact manufacturer for certified options.

Contact Us

For more information about the ASCO JPIS8314B301 24VDC Solenoid Valve, pricing, or to request a demo, contact our team:
