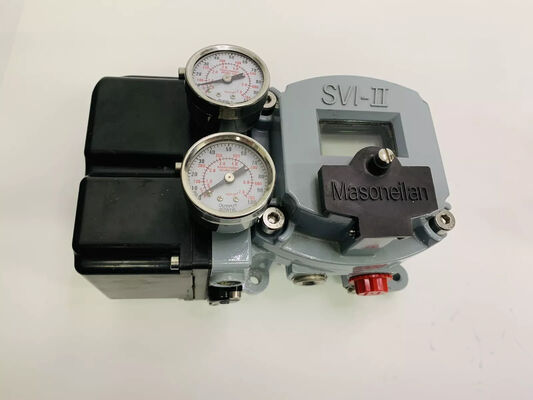

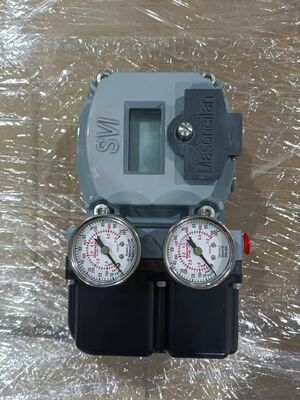

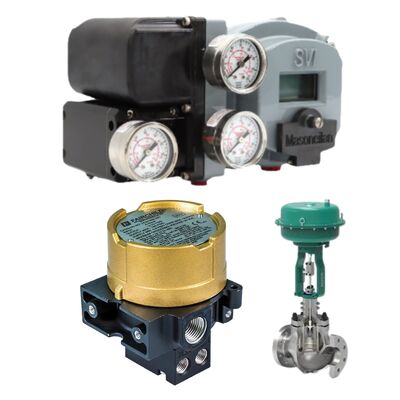

Product Description:
The Masoneilan SVI series valve positioners are advanced electro-pneumatic instruments created specifically for pneumatic control valves used in industrial automation systems. These devices are capable of interpreting 4-20mA analog signals as well as digital communication protocols like HART and FOUNDATION Fieldbus, enabling them to accurately adjust valve positions.
By maintaining precise control over valve positioning, the SVI series helps to ensure the consistent regulation of critical process variables, including flow, pressure, and temperature. This precise modulation is essential for optimizing industrial processes and maintaining product quality.
Equipped with high-precision sensors and powerful microprocessors, the valves utilize adaptive control algorithms to deliver reliable performance even in complex and demanding operating conditions. Furthermore, they support remote monitoring and diagnostic functions, allowing for enhanced control and maintenance capabilities from a distance.
Features:
High Precision Control
This device offers exceptional positioning accuracy within ±0.1% of the full scale. It also maintains hysteresis and deadband values at or below ±0.3%, guaranteeing consistent and reliable flow regulation under various operating conditions.
Smart Communication
Equipped with support for the HART protocol, including optional versions 5 and 7, the system seamlessly integrates with DCS and PLC platforms. This capability allows users to remotely configure parameters, access diagnostic data, and perform firmware upgrades conveniently via the ValVue software.
Modular Design
Designed with modularity in mind, key components like circuit boards and sensors can be quickly swapped out to lower maintenance expenses. Additionally, the device features a "one-touch tuning" function, which helps to minimize equipment downtime during adjustments.
Environmental Adaptability
Built to withstand harsh industrial environments, the device boasts an IP66/NEMA 4X protection rating. It operates reliably across a wide temperature range from -40°C to +85°C and tolerates humidity levels between 10% and 95% RH without condensation.
Explosion-Proof Certification
The product is certified by multiple international standards such as ATEX, IECEx, FM, and CSA. It supports explosion-proof designs (Ex d IIC T6) as well as intrinsically safe designs (Ex ia IIC T4), making it suitable for use in hazardous industrial environments.
Integrated Pressure Gauge
Certain models, including the SVi1000/PR/G/IM, feature integrated pressure gauges that allow for direct monitoring of input and output air pressures. This integration simplifies on-site commissioning and enhances operational efficiency.
Technical Parameters:
| Brand / Manufacturer |
Masoneilan |
| Supply Air Connection |
1/4" NPT (common) |
| Input Signal (Electro-Pneumatic) |
4-20 MA DC (Standard) |
| Supply Air Pressure |
Typically 1.4 To 7 Bar (20 To 100 Psig) |
| Hazardous Area Approvals |
ATEX, IECEx, FM, CSA (for Certified Models) |
| Air Consumption (Steady State) |
Low, Typically < 0.1 SCFM |
| Input Signal (Pneumatic) |
3-15 Psi (0.2-1.0 Bar) |
| Linearity |
±0.5% To ±2.0% Of Span |
| Calibration |
Field Adjustable (zero, Span, Action) |
| Hysteresis |
Typically < 0.3% Of Span |
Applications:
Applications
Petrochemical Industry
This technology is extensively used in refinery reactors and natural gas pipelines to achieve precise flow control of high-temperature and high-pressure media such as crude oil and steam. It is specifically designed to operate reliably in hazardous environments, ensuring safety and efficiency.
Power & Energy
It plays a vital role in regulating valves within steam turbines, condensers, and boiler systems. By maintaining optimal control under conditions of high temperature and vibration, it helps enhance the overall efficiency of power generation.
Water Treatment
In the water treatment sector, this solution is used to manage large-diameter valves that control municipal water supply and wastewater treatment processes. Its precise regulation improves water flow management and optimizes the dosing of chemicals.
Pharmaceutical & Food Processing
The technology complies with strict hygienic standards required for sterile valve control within cleanroom environments. This ensures both the safety of production and the maintenance of cleanliness in pharmaceutical and food processing applications.
Metallurgical Industry
It offers accurate control for atmosphere regulation and fluid transfer during smelting operations. Designed to withstand high-temperature and high-pressure conditions, it supports continuous and stable metallurgical processes.
Support and Services:
Our Valve Accessories product is designed to enhance the performance and reliability of your valve systems. For technical support, please refer to the comprehensive user manuals and installation guides provided with the product. These documents include detailed instructions on installation, operation, and maintenance to ensure optimal functionality.
We offer a range of services to support your Valve Accessories, including troubleshooting assistance, repair services, and replacement parts. Our technical support team is equipped to help diagnose issues and provide expert advice to resolve any problems you may encounter.
Regular maintenance is recommended to extend the life of your Valve Accessories. This includes routine inspections, cleaning, and timely replacement of worn components. Following the maintenance schedule outlined in the product documentation will help maintain performance and prevent unexpected downtime.
For software-related support, firmware updates and configuration tools are available to ensure compatibility and enhance features. Always use the latest software versions recommended by the manufacturer.
We are committed to providing high-quality support and services to ensure your Valve Accessories operate efficiently and effectively throughout their service life.

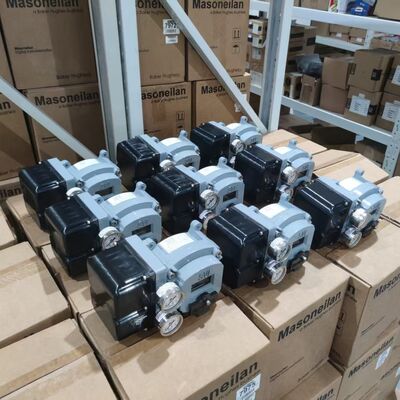

Packing and Shipping:
Our Valve Accessories are carefully packaged to ensure maximum protection during transit. Each item is securely wrapped in protective materials and placed in a sturdy, corrugated cardboard box to prevent damage. The packaging is designed to withstand rough handling and environmental factors, ensuring your product arrives in perfect condition.
For shipping, we partner with reliable carriers to provide timely and safe delivery to your specified location. Shipping options include standard, expedited, and express services to meet your needs. Tracking information will be provided once your order is dispatched, allowing you to monitor the shipment status in real-time.
We also offer customized packaging solutions for bulk orders or special requirements. Please contact our customer service team for more details on tailored packaging and shipping options for Valve Accessories.
