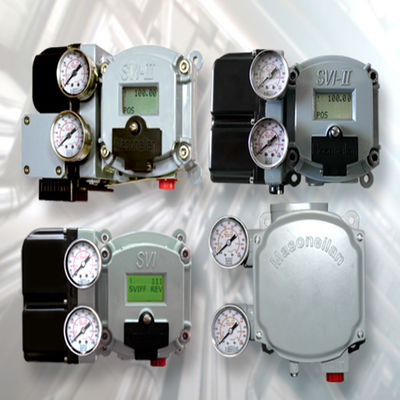

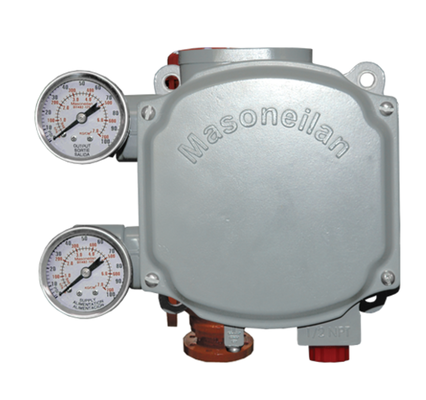

Product Description:
The Masoneilan SVI series valve positioners are advanced electro-pneumatic devices engineered specifically for use with pneumatic control valves in industrial automation systems. These intelligent positioners are capable of receiving 4-20mA analog signals as well as digital communication protocols, including HART and FOUNDATION Fieldbus, to accurately manage valve positioning.
By precisely controlling the valve positions, the SVI series helps maintain stable regulation of critical process parameters such as flow, pressure, and temperature. This ensures optimal performance and enhances the reliability of automated processes within various industrial environments.
Equipped with high-precision sensors, embedded microprocessors, and adaptive control algorithms, these valve positioners offer sophisticated functionality. They also provide capabilities for remote monitoring and diagnostics, enabling effective and precise control even under complex and demanding operating conditions.
Features:
High Precision Control
The system offers an outstanding positioning accuracy within ±0.1% of the full scale. It maintains hysteresis and deadband values at or below ±0.3%, which guarantees precise and stable flow regulation under various operating conditions.
Smart Communication
Equipped with support for the HART communication protocol, available in versions 5 and 7, this device seamlessly integrates with DCS and PLC systems. It allows for remote parameter adjustments, diagnostic data retrieval, and firmware updates through ValVue software, enhancing operational efficiency and ease of management.
Modular Design
The product features a modular construction allowing for the rapid replacement of key components such as circuit boards and sensors. This approach significantly reduces maintenance expenses. Additionally, the inclusion of a "one-touch tuning" function helps minimize system downtime during servicing.
Environmental Adaptability
Designed to withstand harsh industrial environments, the device has an IP66/NEMA 4X protection rating. It operates efficiently across a wide temperature range from -40°C to +85°C and can tolerate relative humidity levels between 10% and 95% (non-condensing), ensuring reliable performance in extreme conditions.
Explosion-Proof Certification
The product is certified by leading standards organizations including ATEX, IECEx, FM, and CSA. It supports explosion-proof designs identified as Ex d IIC T6 as well as intrinsically safe configurations designated Ex ia IIC T4, making it suitable for use in hazardous and potentially explosive atmospheres.
Integrated Pressure Gauge
Certain models, such as the SVi1000/PR/G/IM, come equipped with built-in pressure gauges that display input and output air pressure directly. This feature simplifies field commissioning by providing immediate, on-site pressure readings without the need for additional instruments.
Technical Parameters:
| Type |
Electro-Pneumatic / Pneumatic Valve Positioner |
| Linearity |
±0.5% To ±2.0% Of Span |
| Air Consumption (Steady State) |
Low, Typically < 0.1 SCFM |
| Calibration |
Field Adjustable (zero, Span, Action) |
| Actuator Compatibility |
Single-acting (spring-return) & Double-acting |
| Hazardous Area Approvals |
ATEX, IECEx, FM, CSA (for Certified Models) |
| Hysteresis |
Typically < 0.3% Of Span |
| Input/Output Connections |
Conduit Entries Or Integral Connectors |
| Input Signal (Pneumatic) |
3-15 Psi (0.2-1.0 Bar) |
| Brand / Manufacturer |
Masoneilan |
Applications:
Applications
Petrochemical Industry
In the petrochemical sector, these systems are employed in refinery reactors and natural gas pipelines. They enable precise flow control of high-temperature and high-pressure media, such as crude oil and steam, even in hazardous environments. This ensures safety and operational efficiency in demanding conditions.
Power & Energy
The equipment is essential for regulating valves within steam turbines, condensers, and boiler systems. By operating effectively under high temperatures and vibrations, it helps to enhance the overall efficiency of power generation processes.
Water Treatment
In water treatment facilities, it supports the control of large-diameter valves used in municipal water supply and wastewater treatment plants. This capability optimizes water flow management and the precise dosing of chemicals, contributing to effective water purification and distribution.
Pharmaceutical & Food Processing
These systems comply with strict hygienic standards required for sterile valve control in cleanroom environments. Their application ensures the safety and cleanliness necessary for pharmaceutical production and food processing operations.
Metallurgical Industry
Within the metallurgical industry, precise control of atmosphere regulation and fluid transfer is vital during smelting processes. These systems support continuous operation by maintaining control under conditions involving high temperature and pressure.
Support and Services:
Our Valve Accessories product line is supported by a dedicated team of technical experts who are committed to ensuring optimal performance and reliability. We offer comprehensive technical support services including installation guidance, troubleshooting assistance, and maintenance advice to help you maximize the efficiency and lifespan of your valve accessories.
In addition to technical support, we provide a range of services such as product customization, system integration consulting, and on-site inspections to meet your specific operational requirements. Our team is equipped to assist with selecting the right accessories for your application, ensuring compatibility and compliance with industry standards.
We also offer training sessions and detailed documentation to empower your staff with the knowledge needed to operate and maintain valve accessories safely and effectively. Continuous product updates and upgrade options are available to keep your systems up-to-date with the latest technological advancements.
By choosing our Valve Accessories, you benefit from not only high-quality products but also a comprehensive support network designed to enhance your operational success and minimize downtime.
Packing and Shipping:
Our Valve Accessories are carefully packaged to ensure maximum protection during transit. Each item is securely wrapped with protective materials and placed in a sturdy, custom-designed box to prevent damage. The packaging is labeled clearly with product information and handling instructions to facilitate smooth shipping and handling.
We offer reliable shipping options to deliver your Valve Accessories promptly and safely. All orders are processed and dispatched within 1-2 business days. Tracking information is provided to keep you updated on the status of your shipment. For international orders, we ensure compliance with all customs regulations to avoid any delays.
